20 Aluminum Profile Connection Modes for Non-Standard Equipment

Aluminum profiles are often used in non-standard design. After oxidation on the surface of the industrial aluminum profile, the appearance is very beautiful. When assembled into products, special aluminum profile accessories are used, which do not need welding. It is more environmentally friendly, and very convenient for installation, disassembly, carrying and moving. The connection modes […]

Table Of Contents

Aluminum profiles are often used in non-standard design. After oxidation on the surface of the industrial aluminum profile, the appearance is very beautiful.

When assembled into products, special aluminum profile accessories are used, which do not need welding. It is more environmentally friendly, and very convenient for installation, disassembly, carrying and moving.

The connection modes of aluminum profiles are also diversified. Let’s briefly introduce 20 connection modes of aluminum profiles, which are demonstrated in the form of dynamic diagram. It is more intuitive and you can save it.

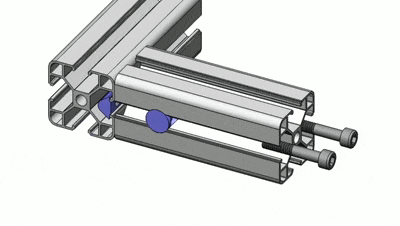

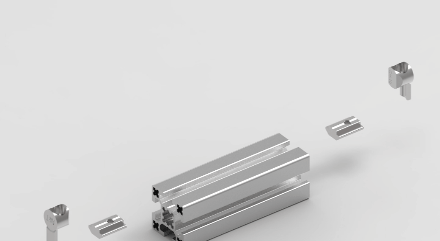

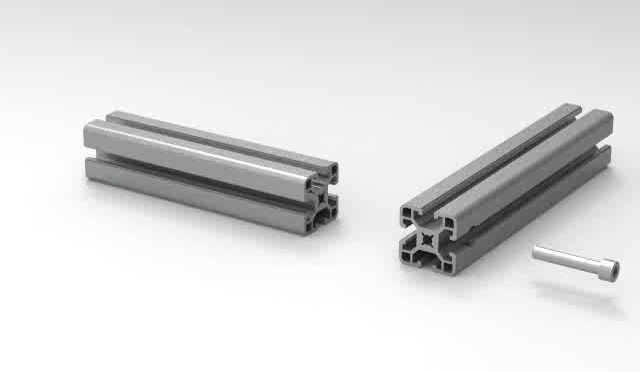

1. Built in connector

For 90 ° connection of two profiles; Concealed connection; High connection strength.

Connection Modes Of Aluminum Profiles

Intermediate connection mode:

Connection Modes Of Aluminum Profiles

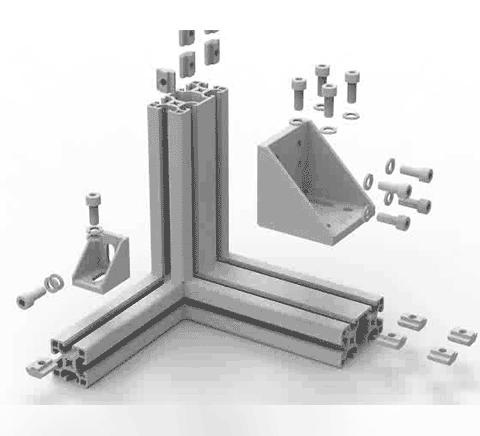

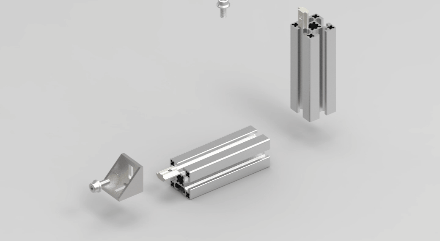

2. Corner connector (90 °, 45 °, 135 °)

External connection for the fixed angle of the profile;

It is divided into three angles: 90 °, 45 ° and 135 °;

Can be used to fixed sealing plate.

Connection Modes Of Aluminum Profiles

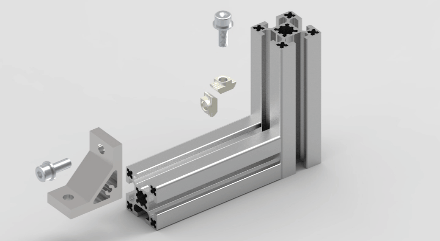

Die cast angle aluminum right angle connection:

Connection Modes Of Aluminum Profiles

Extruded angle aluminum right angle connection:

Connection Modes Of Aluminum Profiles

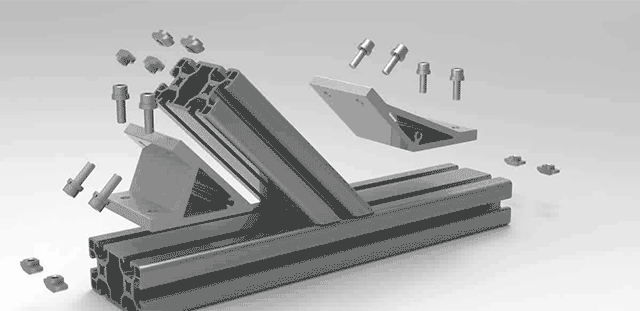

45 °, 135 ° connection:

Connection Modes Of Aluminum Profiles

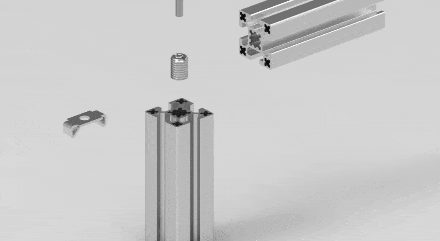

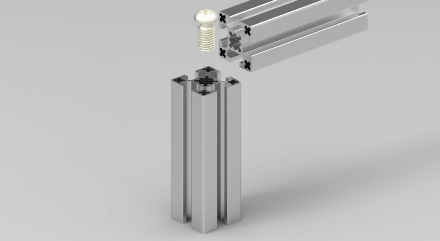

3. Screw connection

For 90 ° internal connection of two profiles;

Easy installation and disassembly;

It is often used for simple profile cover connection.

Connection Modes Of Aluminum Profiles

Different styles of screw connection:

Connection Modes Of Aluminum Profiles

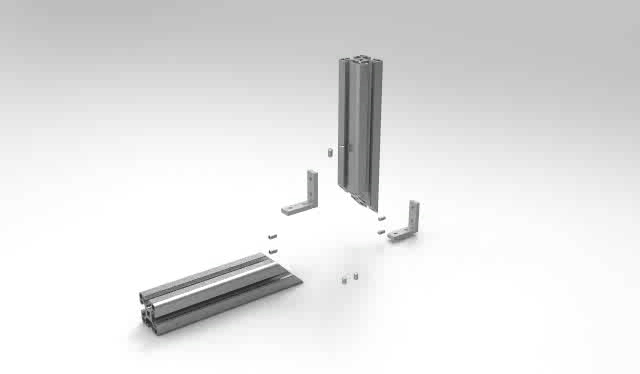

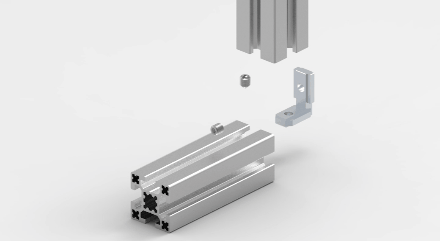

4. L-shaped corner groove connector (90 °)

For 90 ° connection of two profiles;

Simple installation and disassembly;

Profiles do not need to be processed.

Connection Modes Of Aluminum Profiles

5. High strength angle groove connector (45 °)

It is used for connecting two 45 ° angle profiles in the corner groove;

High strength;

Commonly used to fix door frame profiles.

Connection Modes Of Aluminum Profiles

6. End face connector

Used for right angle connection between two or three profiles;

Firm;

Beautiful.

Connection Modes Of Aluminum Profiles

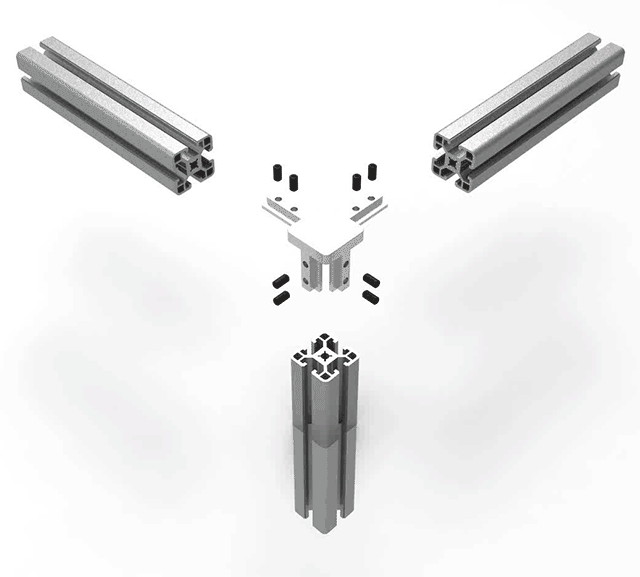

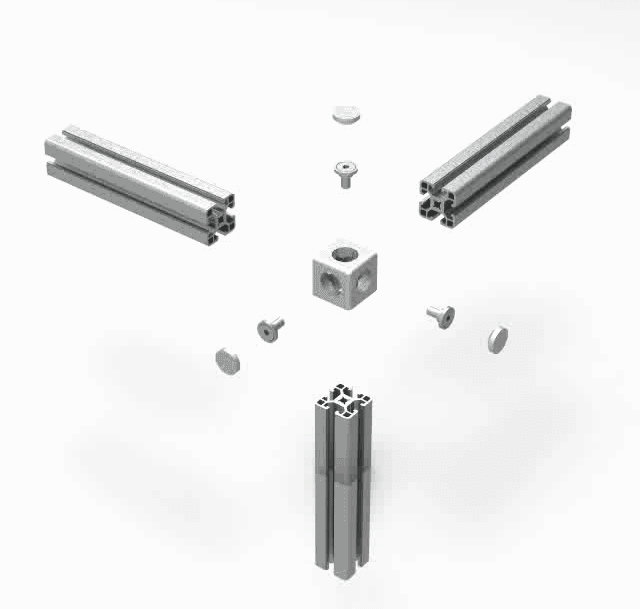

7. Three dimensional connector (right angle)

Used for right angle connection between three profiles;

Easy and fast connection.

Connection Modes Of Aluminum Profiles

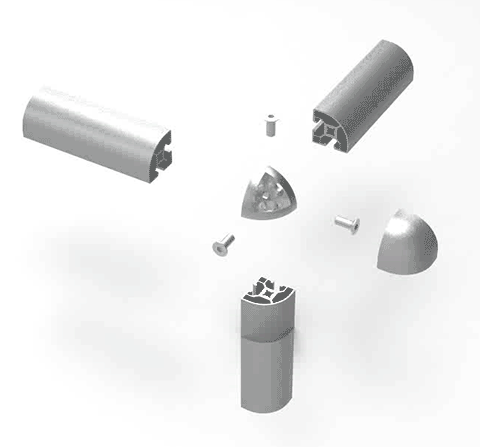

8. Three dimensional connector (R angle)

It is used for right angle connection between three arc-shaped profiles;

Convenient and fast connection.

Connection Modes Of Aluminum Profiles

9. Elastic fastener

For 90 ° internal connection of two profiles;

Easy installation and disassembly.

Connection Modes Of Aluminum Profiles

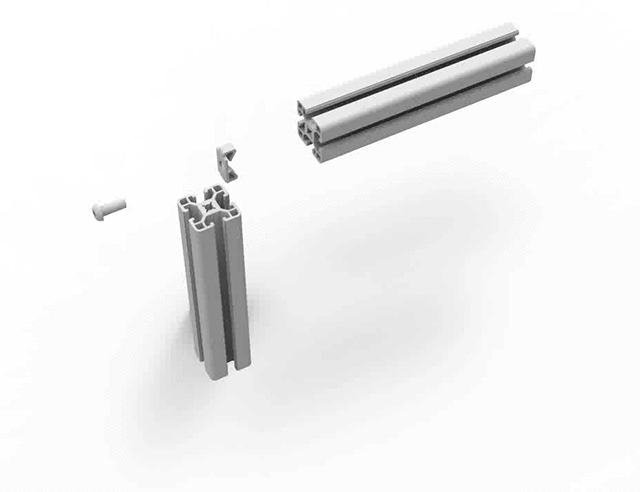

10. End connector

For 90 ° internal connection of two profiles;

Concealed connection;

High connection strength.

Connection Modes Of Aluminum Profiles

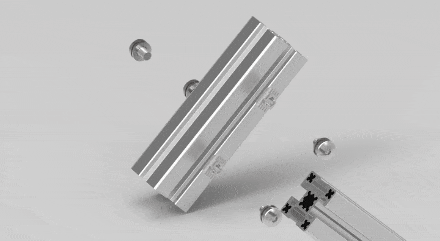

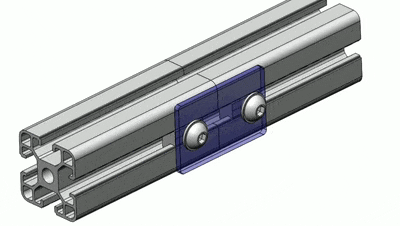

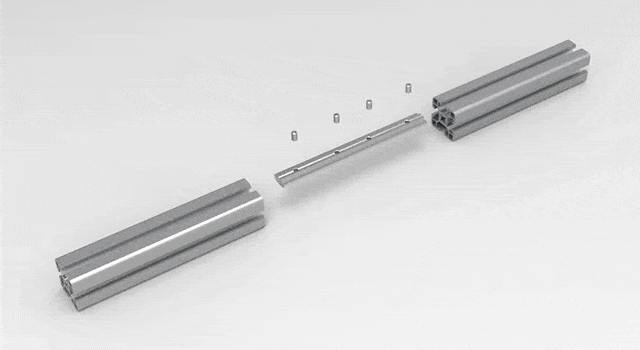

11. Straight line connector

It is used for high-strength pair connection of two profiles.

Connection Modes Of Aluminum Profiles

12. Anchor connector

Used for the connection of two profiles;

Multiple angles to choose from;

Concealed connection;

Convenient for profile installation.

Connection Modes Of Aluminum Profiles

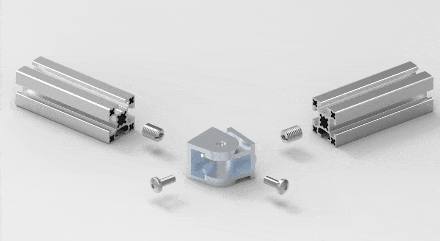

13. Movable hinge

Used for the connection of two profiles;

30 ° – 150 ° arbitrary adjustment.

Connection Modes Of Aluminum Profiles

14. Steering connecting plate

Used for connection of various profiles;

Multi angle rotation is possible.

Connection Modes Of Aluminum Profiles

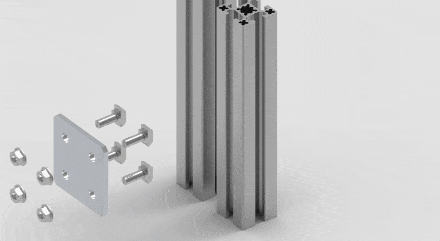

15. Connecting plate

Used for connection of multiple profiles;

High connection strength;

There is no need to process the profile, and the installation is convenient.

Connection Modes Of Aluminum Profiles

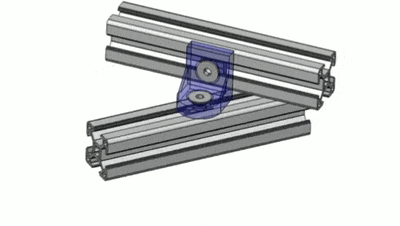

16. Steering corner connector

It can realize the connection of profiles at any angle.

Connection Modes Of Aluminum Profiles

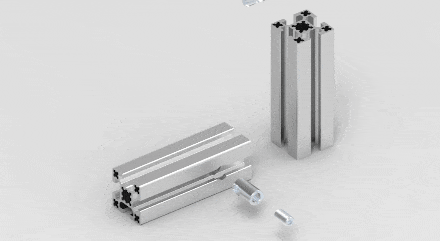

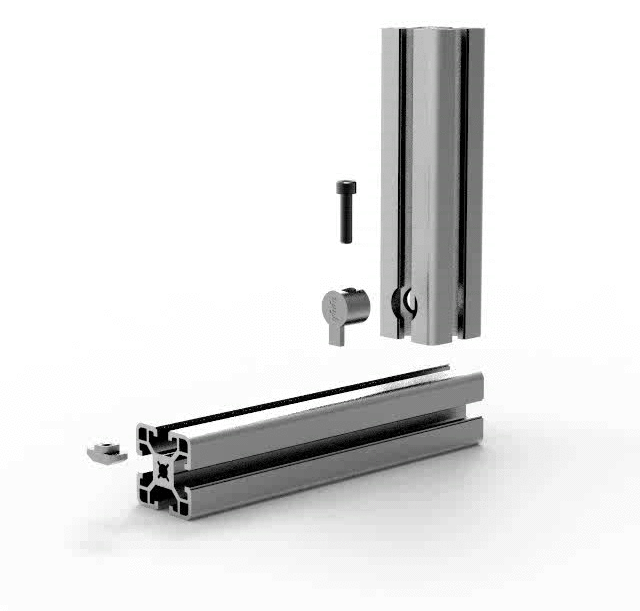

17. Bolt head assembly

Install the elastic nut into the profile;

Install the circular column into another profile;

Fix it with bolts.

Connection Modes Of Aluminum Profiles

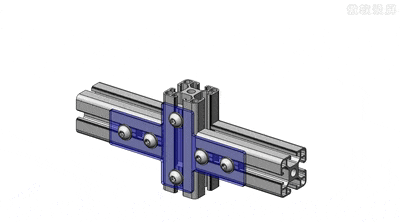

18. Cross shaped connecting plate

It is used for high-strength connection of single slot profile “+” structure.

Connection Modes Of Aluminum Profiles

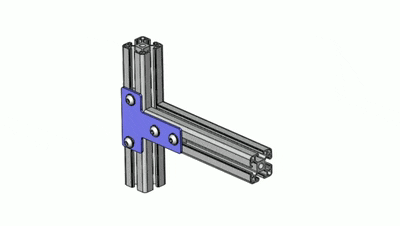

19. L-type, T-type – external connecting plate

It is used for high-strength connection of single groove profile “L” or “t” structure.

Connection Modes Of Aluminum Profiles

20. Type Y – external connecting plate

It is used for high-strength connection of single groove profile “-” structure.

Connection Modes Of Aluminum Profiles
