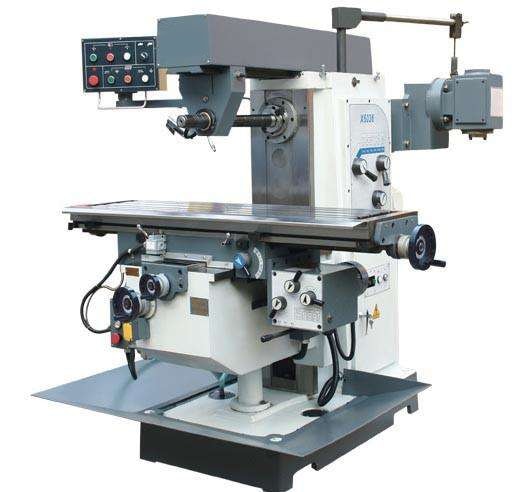

Horizontal Milling Machine

The horizontal milling machine is a kind of machine tool with 12 speeds.

It can be used to process various planes, bevels, grooves, etc. with various cylindrical milling cutters, wafer milling cutters, angle milling cutters, forming milling cutters and end milling cutters.

Horizontal Milling Machine


Specially shaped parts such as gears, cams, curved grooves and helicoids can be machined with the appropriate milling machine attachment.

It is equipped with milling machine accessories such as universal milling head, round table and indexing head.

It can also process holes for medium and small parts after using the boring bar.

With the addition of a vertical milling head, it is possible to cut with an end mill (the end mill is a special accessory) to further expand the range of machine tools.

This machine is suitable for various machining industries.

Horizontal milling machine features

  1. The spindle sleeve can be manually micro-injected, and has a limit device, and the milling head can be adjusted smoothly and counterclockwise by 45°;
  2. The worktable can be manually fed vertically and horizontally and vertically up and down, while horizontally and vertical maneuvering can be realized in vertical and horizontal directions;
  3. It adopts 1200mm extended slider and 1500mm extended table. The longitudinal stroke of the table can reach 1000mm, the stroke is long and the stability is stronger.
  4. Both the main drive and the feed adopt a gear shifting mechanism, and the speed adjustment range is wide;
  5. The main shaft bearing adopts tapered roller bearing, which has strong bearing capacity and energy consumption braking. It has large braking torque, quick stop and reliable braking.
  6. The rectangular guide rail has good stability;
  7. The table and the guide rail are quenched by super audio and have greater strength.

Horizontal lifting table milling machine features

  • The spindle has good steel and strong bearing capacity.
  • Worktable X, Y, Z three-way motorized feed
  • X, Y, Z three-way guide rail sub-audio quenching, precision grinding
  • The manual lubrication device forcibly lubricates the lead screw and the guide rail.
  • Special accessories – vertical milling heads can be configured for vertical milling.

Vertical horizontal universal lifting table milling machine features:

  • It can realize the processing functions of vertical and horizontal milling.
  • Two-section rotary milling head and spindle can be rotated and adjusted at any angle.
  • Can be used to machine shells and molds.
  • Worktable X, Y to maneuver feed.


The advantages of a horizontal milling machine are as follows:

  1. The machine tool is rigid and can carry heavy load cutting.
  2. The spindle motor of the horizontal milling machine has high power and wide range of shifting speed, giving full play to the tool performance and high-speed cutting.
  3. The wear-resistant castings are made of vanadium-titanium wear-resistant cast iron, and the important parts are made of high-quality alloy steel, which is stable and durable.
  4. The machine tool has a perfect lubrication system.
  5. Horizontal milling machine can be configured according to user needs digital display device. This product is easy to operate with reliable performance. Various cylindrical milling cutters, wafer milling cutters, angle milling cutters, forming milling cutters and end milling cutters can be used to process various planes, bevels, grooves.
