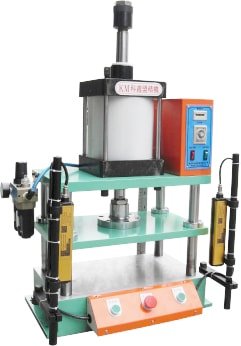

Pneumatic Punching Machine

The pneumatic punching machine operates by using high-pressure gas generated by a compressor. The compressed gas is then conveyed through a pipeline to a solenoid valve, which is controlled by a foot switch. This control over the solenoid valve allows for the operation of the cylinder, ultimately achieving the goal of punching.

Pneumatic Punching Machine

Technical principle

The compressed air can be stored in a gas storage tank and accessed as needed, eliminating any idle energy waste from the motor.

The use of a cylinder as the working component and a solenoid valve as the control element simplifies the machine’s structure, reduces the failure rate, increases safety, simplifies maintenance, lowers maintenance costs, and increases production efficiency.

The solenoid valve is controlled by a 220V power supply, making it simple and convenient to operate.

Main feature

1. The pneumatic punch is relatively hygienic and clean.

The implementation of advanced optoelectronic protection technology significantly enhances safety performance.

The use of computer counting and programming allows for unattended processing flow, significantly improving work efficiency and reducing production costs.

Electric punching machines are widely used in the punching of metal and non-metal pipes and plates. However, these machines have several disadvantages, including high noise levels and environmental pollution, complex structures that lead to high costs, difficult maintenance, and high maintenance costs, a bulky body, and high power consumption. Additionally, their operation is complicated, with a high failure rate and a large safety hazard.

2. The machine has simple structure and low production cost.

The pneumatic punching machine adopts pneumatic technology, enabling multiple machines to be powered by a single air compressor, making it more energy-efficient compared to electric punching machines.

It reduces power consumption, has a simple operation, high safety, and is controlled by a foot switch that activates the electromagnetic valve. The machine has a simple structure, low failure rate, and improved production efficiency.


Applicable to the hole punching of various metal and non-metal pipes and plates.

Industry: Machinery

Industry: Household Products

  • Electronics
  • Communication
  • Electrical appliances
  • Lighting
  • Toys
  • Chassis
  • Furniture
  • Sports equipment
  • Barbecue tableware hardware
  • Lighting hardware
  • Electronic hardware
  • Chassis cabinets
  • Kitchen utensils
  • Hinges
  • Cotter pins
  • Spring pins
  • Pliers
  • Dried fruit pliers
  • Packaging materials
  • Stickers
  • Mobile phone film
  • Gaskets
  • Mats
  • Aluminum
  • Terminals
  • Speaker nets

Industry: Road Traffic

  • Transportation products
  • Automotive/Safety products
  • Protective equipment
  • Automotive and motorcycle accessories
  • Communication products

Industry: Office Supplies

  • Power cabinets
  • ATM teller shells
  • Air conditioning parts
  • Printers
  • Copier racks
  • Precision sheet metal products
