The world of metal fabrication involves various machines suited to specific tasks, with power presses and press brakes being two essential tools. Understanding the differences between these two machines is crucial for determining the appropriate equipment to use for a particular job.
A power press is a versatile machine that can be applied to cut, punch, and mix various shapes that any metal material requires. Its energy resource regenerates from the engine of the system.
On the other hand, a press brake is a machine specifically designed for bending and deforming metal workpieces, including sheet metal, by pressing them between a tool and die. The press brake’s purpose is achieved by applying pressure to the metal or plate material along a specified line to create a bend.
Although both power press and press brake are employed in shaping and forming metal, their applications, strengths, and techniques differ notably. By comprehending these distinctions, one can optimize their use in the metal fabrication industry and enhance efficiency in completing projects.
Understanding Power Press
Working Principle of Power Press
A power press is a cold metalworking machinery designed to shape, cut, punch, and form metal by applying force or pressure using tools and dies. The core of the machine’s operation lies in its energy source, which could be either mechanical or hydraulic. Typically, a flywheel provides the energy required to perform the action, which is transferred through a clutch and crank mechanism. This results in the machinery exerting force on a workpiece, placed on a bottom die, ultimately shaping it according to the desired specifications.
Types of Power Press
Power presses can be broadly classified into two primary categories based on their energy sources:
- Mechanical Power Press: These machines utilize a mechanical-friction clutch that channels the energy from the flywheel directly to the crank mechanism. Mechanical power presses are preferred for their high-speed operation and are widely used for mass production.
- Hydraulic Power Press: In hydraulic power presses, the energy comes from hydraulic pressure, which is then converted into mechanical force. Hydraulic systems generally offer better control over the applied force and are suitable for heavy-duty operations.
Other than categorizations based on energy sources, power presses come in various designs and mechanisms according to specific market needs and requirements.
Advantages and Limitations of Power Press
Advantages:
- Efficiency: Power presses are known for their high efficiency in mass production and significantly lower production time.
- Cost-effective: In comparison to manually operated presses, power presses offer reduced labor costs and increased output, lowering the overall manufacturing cost.
- Flexibility: With the right set of dies and tools, power presses can perform various operations, such as cutting, punching, and forming, on a wide range of materials.
- Precision: The controlled application of force and pressure ensures precise and consistent results in every operation.
Limitations:
- Maintenance: The machinery requires regular maintenance and part replacement to ensure optimal performance.
- Initial Investment: Power presses can be expensive upfront, especially hydraulic systems, but offer excellent returns on investment over time due to increased productivity and efficiency.
Manufacturers and businesses must consider their specific needs, market conditions, and budgetary constraints when selecting the appropriate power press machinery for their operations.
Understanding Press Brakes

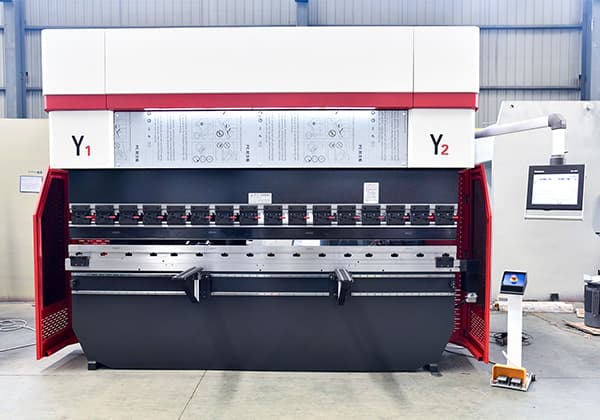

Working Principle of Press Brake
Press brakes are advanced fabrication machines used for bending sheet metal into specific shapes for commercial and industrial applications. They operate with a top tool (punch) and a bottom tool (die), exerting force between them to create the desired bend. The force produced by the press brake, typically measured in tons, is exerted on the ram, which presses the sheet metal into the die, forming the bend.
Precision is ensured through the use of a backgauge, which positions the metal workpiece at the correct distance from the tooling. The bending angle can be adjusted by controlling the ram’s travel, allowing different angles and bends to be made based on the operator’s requirements.
Types of Press Brakes
There are mainly three types of press brakes:
- Mechanical Press Brakes: These use a flywheel-driven crankshaft and connecting rod system to generate force. While they usually have a lower purchase cost, they have comparatively lower accuracy and lack the versatility of modern models.
- Hydraulic Press Brakes: These rely on hydraulics to exert force on the ram, enabling smooth, synchronized operation. Hydraulic press brakes are known for their precision, power, and multi-axis backgauge capabilities.
- Electric Press Brakes: These use electric motors and ball screw or belt drive systems to generate force on the ram. Electric press brakes are quieter, more energy-efficient, and faster than hydraulic models, offering excellent accuracy and high bending speeds.
Advantages and Limitations of Press Brakes
Advantages:
- Versatility: Press brakes can bend various materials, thicknesses, and shapes. With the right tooling, users can create complex parts with required specifications.
- Precision: Many modern press brakes, especially hydraulic and electric models, offer high levels of accuracy and repeatability in bending operations.
- Adaptability: Press brakes can accommodate a wide range of tooling to meet diverse bending needs, including custom tooling for specific applications.
Limitations:
- Initial Investment: High-quality press brakes, particularly hydraulic and electric models, can be expensive upfront. However, their long-term benefits often outweigh the initial costs.
- Control Systems: To maximize efficiency and precision, press brakes require advanced control systems, such as computer numerical control (CNC) or numerical control (NC) systems. These technologies can increase the complexity of the machines and their maintenance.
- Operator Skill: Effective use of press brakes requires skilled operators. Training and experience are essential for producing accurate and consistent results.
In summary, understanding the working principles, types, and advantages and limitations of press brakes provides valuable insight into the potential of these powerful and precise bending machines, enabling users to make informed decisions when choosing and working with them.
Key Components of Power Press and Press Brake
Components of Power Press
Power presses are used to shear, punch, form, or assemble metal using cutting, shaping, or combination dies attached to slides. The significant components of a power press include:
- Frame: The main body of the press that provides structural support.
- Slide/Ram/Plunger: The primary reciprocating press member that moves to apply force on the workpiece.
- Bolster Plate: The foundation for supporting the die assembly.
- Die Assembly: Consists of dies and other tools that shape, punch, or cut the workpiece.
- Punch Press: A type of power press that creates holes in the material using a punch and die.
- Drive System: Electric motor, pneumatic, or hydraulic cylinders that provide the press’s operating force.
- Foot Pedal: A foot-operated control that activates the ram’s motion when pressed.
Components of Press Brake
Press brakes are used to bend and deform metal workpieces, particularly sheet metal, by pressing them between a tool and die. The essential components of a press brake include:
- Top Tool: The tool used to apply pressure to the metal sheet to form the desired bends.
- Bottom Die: Die used to support the metal sheet during bending, usually with different profile shapes such as V-dies or offset dies.
- Back Gauge: An adjustable stop used for accuracy and repeatability of the bend positions.
- Stroke Length: The maximum distance the ram can travel to form bends.
- Hydraulic System: Comprises oil, hydraulic cylinders, and other components that provide the controlled force for bending.
- C-Type Frame: A frame structure that allows easy access to the workspace and suitable for loading and unloading workpieces.
By understanding the key components of power presses and press brakes, users can better operate and maintain these machines for optimal performance.
Operation and Safety Measures
Operation of Power Press
Power presses are cold metal stamping machines designed for shaping, cutting, forming, and punching metal. They come in various types, including screw press, stamping press, and forming press. These machines are commonly used for mass production of metal parts and components and are powered either hydraulically or mechanically.
During the operation of a power press, the metal sheet is placed between the top die and bottom die. The press applies pressure to shape, cut, or form the workpiece as desired. The precision and accuracy of these machines are crucial to produce high-quality end products. Speed and strength are vital parameters to consider in the operation of power presses.
Proper training is paramount to ensure efficient operation of power presses. Operators must be familiar with the controls, positioning, and technology used in the press to maintain accuracy and precision during work. Safety measures are essential to prevent any accidents or injuries. Some key safety measures include using guards around the stamping area, maintaining safe distances, and regular maintenance and inspection of the machine press.
Operation of Press Brake
Press brakes are a type of forming press that is used to bend metal sheets by applying force through a top die onto a bottom die. The main purpose of a press brake is to create complex and precise bends in metal workpieces. Press brakes come in various types, such as hydraulic press, mechanical-friction clutch press, and hydra-mechanical press.
The metal sheet is positioned between the dies, and the top die moves downwards, applying pressure onto the workpiece, leading to the desired bend. The accuracy and precision of the press brake are vital for ensuring high-quality output. Operators must be skilled in positioning the metal and adjusting the controls to achieve the desired bend angle and radius while maintaining a consistent result.
For efficient operation of press brakes, training is essential for operators to understand the technology, positioning, and controls involved in the process. Press brakes can create complex shapes, so precision is crucial for achieving the desired result.
Safety measures are vital during the use of press brakes to avoid accidents and injuries. Operators should follow guidelines such as using machine guarding, maintaining a safe distance from the press brake while it’s operating, and keeping loose clothing or jewelry away from moving parts. Additionally, regular maintenance and inspection of the press brake are crucial to ensure the smooth and safe functioning of the machine.
Comparative Analysis
Functionality Comparison
Power press machines and press brakes are both used in the manufacturing industry for shaping and bending metal sheets, but they have some differences in functionality.
A power press is a mechanically-powered device designed for shearing, punching, forming, or assembling metal by employing cutting, shaping, or combination dies attached to slides. Its main function is to apply significant pressure on the metal piece, forcing it to take the shape of the die using a slide or ram mechanism. Power presses are better suited for tasks that require high precision in shaping or cutting intricate features in the metal.
On the other hand, a press brake is a machine used exclusively for bending sheet metal and metal plates. It forms predetermined bends by clamping the workpiece between a matching top tool and bottom die. The press brake focuses on accuracy and reducing deflection in the bending process, making it ideal for creating bends in sheet metal with minimal distortion.
In terms of efficiency, power presses are considered more efficient in mass-producing stamped metal parts, whereas press brakes excel at providing greater precision when it comes to bending and shaping metal.
Cost Comparison
When comparing the costs of power press machines and press brakes, several factors come into play such as machine type, size, tonnage, and additional components needed for specific applications.
Power press machines generally have a lower initial cost compared to press brakes due to their simpler structure and function. However, they may require more regular maintenance, and the cost of dies for complex shapes can be high.
Press brakes are more versatile and can perform various bending operations without needing multiple dies, reducing the overall operating costs. However, their initial investment is higher due to the complex hydraulic, pneumatic, or electronic systems involved in the bending process.
In summary, the difference between power press and press brake lies in their functionality, cost, and application suitability. Power presses are better suited for high-precision stamping and cutting tasks, while press brakes excel at providing accurate bends on sheet metal with minimal distortion. Costs vary depending on several factors, with power presses generally having a lower initial cost but potentially higher operating costs, and press brakes requiring a higher initial investment but offering greater versatility and potential savings on operating costs.
Conclusion
Power presses and press brakes both have significant roles in the metalworking industry. Power presses are cold metal stamping machines used for shaping, cutting, forming, and punching metal. These machines come in two types: hydraulically and mechanically powered. Press brakes, on the other hand, are designed to bend and deform metal workpieces, particularly sheet metal, by pressing them between a tool and die.
Within the category of press brakes, there are hydraulic press brakes, electric press brakes, and mechanical press brakes. Each type has its advantages and disadvantages. Hydraulic press brakes are known for their precise bending capabilities and are widely used in today’s industry. Electric press brakes offer energy efficiency and precision control, while mechanical press brakes, once the standard, are now less common due to advancements in technology.
When comparing power presses and press brakes, it is important to consider the specific tasks and requirements at hand, as each machine serves a different purpose. Power presses excel at mass production and creating precise shapes and cuts, while press brakes focus on bending and deforming metal workpieces.
Choosing the right machine will depend on the nature of the work, as well as factors such as speed, energy use, and control requirements. In summary, both power presses and press brakes serve vital roles in metalworking, and understanding their differences is crucial for making informed decisions in the industry.
