Looking for a comprehensive guide on rivet specifications? Look no further!
Our blog post has got you covered with detailed information on various types of rivets, including Semi Tubular Rivets, Truss Head Rivets, Flat Head Rivets, Countersunk Head Rivets, and Round Head Rivets.
With precise measurements and tolerances provided for each type, you’ll be equipped with all the knowledge you need to make informed decisions about your rivet selection.
So, whether you’re a DIY enthusiast or a professional in the manufacturing industry, read on to learn everything you need to know about rivet specifications.
1. Semi Tubular Rivets
Thin Round Head Rivets
JIS B1215
unit : mm
| Nominal diameter | 1.2 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | |||
| d Basic size | 1.2 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | |||
| Tolerance | +0.02 -0.05 | +0.02 -0.06 | +0.02 -0.08 | +0.02 -0.10 | +0.02 -0.12 | +0.02 -0.15 | ||||||
| D Basic size | 2.2 | 3 | 3.7 | 4.6 | 5.4 | 7.2 | 9 | 10.5 | 13.5 | |||
| Tolerance | 0 -0.3 | 0 -0.4 | 0 -0.5 | 0 -0.6 | ||||||||
| H Basic size | 0.3 | 0.4 | 0.6 | 0.9 | 1.1 | 1.4 | 1.8 | 2.1 | 2.8 | |||
| Tolerance | ±0.1 | ±0.15 | ±0.2 | |||||||||
| A Basic size | 0.8 | 1.1 | 1.3 | 1.7 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 | |||
| Tolerance | ±0.04 | ±0.05 | ±0.07 | ±0.1 | ±0.12 | |||||||
| B Basic size | 1.1 | 1.4 | 1.8 | 2.3 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 | |||
| Tolerance | ±0.1 | ±0.15 | ±0.2 | ±0.25 | ±0.3 | |||||||
| r Max. | 0.06 | 0.08 | 0.1 | 0.2 | 0.3 | 0.4 | ||||||
Truss Head Rivets
JIS B1215
unit : mm
| d Basic size | 1.2 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 |
| +0.02 -0.05 | +0.02 -0.06 | +0.02 -0.08 | +0.02 -0.10 | +0.02 -0.12 | +0.02 -0.15 | ||||
| D Basic size | 2.7 | 3.6 | 4.5 | 5.6 | 6.6 | 8.8 | 11 | 13 | 17 |
| 0 -0.3 | 0 -0.4 | 0 -0.5 | 0 -0.6 | ||||||
| H Basic size | 0.5 | 0.7 | 1 | 1.3 | 1.4 | 1.8 | 2.4 | 2.8 | 3.8 |
| ±0.1 | ±0.15 | ±0.2 | |||||||
| A Basic size | 0.8 | 1.1 | 1.3 | 1.7 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 |
| ±0.04 | ±0.05 | ±0.07 | ±0.1 | ±0.12 | |||||
| B Basic size | 1.1 | 1.4 | 1.8 | 2.3 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 |
| ±0.1 | ±0.15 | ±0.2 | ±0.25 | ±0.3 | |||||
| r Max. | 0.06 | 0.08 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | |
Flat Head Rivets
JIS B1215
unit : mm
| Nominal diameter | 1.2 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 68 | |
| d Basic size | 1.2 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 |
| Tolerance | +0.02 -0.05 | +0.02 -0.06 | +0.02 -0.08 | +0.02 -0.10- | +0.02 -0.12 | +0.02 -0.15 | |||
| D Basic size | 2.2 | 3 | 3.7 | 4.6 | 5.4 | 7.2 | 9 | 10.5 | 13.5 |
| Tolerance | 0 -0.3 | 0 -0.4 | 0 -0.5 | 0 -0.6 | |||||
| H Basic size | 0.3 | 0.4 | 0.6 | 0.9 | 1.1 | 1.4 | 1.8 | 2.1 | 2.8 |
| Tolerance | ±0.1 | ±0.15 | ±0.2 | ||||||
| A Basic size | 0.8 | 1.1 | 1.3 | 1.7 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 |
| Tolerance | ±0.04 | ±0.05 | ±0.07 | ±0.1 | ±0.12 | ||||
| B Basic size | 1.1 | 1.4 | 1.8 | 2.3 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 |
| Tolerance | ±0.01 | ±0.15 | ±0.2 | ±0.25 | ±0.3 | ||||
| r Max | 0.06 | 0.08 | 0.1 | 0.2 | 0.3 | 0.4 | |||
Countersunk Head Rivets
B121
unit : mm
| Nominal diameter | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 |
| d Basic size | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 |
| Tolerance | +0.02 -0.06 | +0.02 -0.08 | +0.02 -0.10 | +0.02 -0.12 | +0.02 -0.15 | ||
| D Basic size | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| Tolerance | 0 -0.4 | 0 -0.5 | 0 -0.6 | 0 -0.7 | 0 -0.8 | ||
| H Approx | 1 | 1.3 | 1.5 | 2 | 2.5 | 3 | 4 |
| A Basic size | 1.3 | 1.7 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 |
| Tolerance | ±0.05 | ±0.07 | ±0.01 | ±0.12 | |||
| B Basic size | 1.8 | 2.3 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 |
| Tolerance | ±0.15 | ±0.2 | ±0.25 | ±0.3 | |||
Round Head Rivets
JIS B1215
unit : mm
| Nominal diameter | 1.2 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 |
| d Basic size | 1.2 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 |
| Tolerance | +0.02 -0.05 | +0.02 -0.06 | +0.02 -0.08 | +0.02 -0.10 | +0.02 -0.12 | +0.02 -0.15 | |||
| D Basic size | 2.2 | 3 | 3.7 | 4.6 | 5.4 | 7.2 | 9 | 10.5 | 13.5 |
| Tolerance | 0 -0.3 | 0 -0.4 | 0 -0.5 | 0 -0.6 | |||||
| H Basic size | 0.7 | 1 | 1.2 | 1.5 | 1.8 | 2.4 | 3 | 3.6 | 4.8 |
| Tolerance | ±0.1 | ±0.15 | ±0.2 | ||||||
| A Basic size | 0.8 | 1.1 | 1.3 | 1.7 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 |
| Tolerance | ±0.04 | ±0.05 | ±0.07 | ±0.1 | ±0.12 | ||||
| B Basic size | 1.1 | 1.4 | 1.8 | 2.3 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 |
| Tolerance | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | ||||
| r Max. | 0.06 | 0.08 | 0.1 | 0.2 | 0.3 | 0.4 | |||
Truss Head
ANSI B18.7 1972
unit : inch
| Nominal Size | B | C | D | J | K | ||||
| Shank Diameter | Head Diameter | Head Thickness | Type S Straight Hole Rivets | ||||||
| Hole Dia at End of rivet | Hole Depth to Start of Apex | ||||||||
| Max | Min | Max | Min | Max | Min | Max | Min | Nominal | |
| 0.061 | 0.061 | 0.058 | 0.13 | 0.12 | 0.019 | 0.015 | 0.044 | 0.039 | 0.046 |
| 0.089 | 0.089 | 0.085 | 0.192 | 0.182 | 0.026 | 0.02 | 0.068 | 0.062 | 0.064 |
| 0.123 | 0.123 | 0.118 | 0.286 | 0.276 | 0.038 | 0.03 | 0.09 | 0.084 | 0.094 |
| 0.146 | 0.146 | 0.141 | 0.318 | 0.306 | 0.045 | 0.035 | 0.107 | 0.1 | 0.126 |
| 0.188 | 0.188 | 0.182 | 0.381 | 0.369 | 0.065 | 0.055 | 0.141 | 0.134 | 0.155 |
| Nominal Size | B | C | D | J | K | |||
| Shank Diameter | Head Diameter | Head Thickness | Type S Straight Hole Rivets Hole Dia at End of rivet | Hole Depth to Start of Apex | ||||
| Max | Min | Max. Edge Sharp | Min. Edge Round or Flat | Ref | Max | Min | Nominal | |
| 0.089 | 0.089 | 0.085 | 0.223 | 0.203 | 0.039 | 0.068 | 0.062 | 0.064 |
| 0.123 | 0.123 | 0.118 | 0.271 | 0.245 | 0.043 | 0.09 | 0.084 | 0.094 |
| 0.146 | 0.146 | 0.141 | 0.337 | 0.307 | 0.056 | 0.107 | 0.1 | 0.126 |
| 0.188 | 0.188 | 0.182 | 0.404 | 0.369 | 0.063 | 0.141 | 0.134 | 0.155 |
| 0.217 | 0.217 | 0.21 | 0.472 | 0.43 | 0.075 | 0.163 | 0.155 | 0.189 |
| 0.252 | 0.252 | 0.244 | 0.54 | 0.493 | 0.084 | 0.184 | 0.176 | 0.219 |
2. Cold Headed Rivets
Flat Head Rivets
JIS B 1213
| Nominal Diameter | Column 1 Column 2 Column 3 | 1 | 1.2 | 1.4 | 1.6 | 1.7 | 2 | 2.3 | 2.5 | 2.6 | 3 | ||
| Shank Diameter （d） | Basic dimension | 1 | 1.2 | 1.4 | 1.6 | 1.7 | 2 | 2.3 | 2.5 | 2.6 | 3 | ||
| Tolerances | +0.04 -0.02 | +0.05 -0.02 | +0.06 -0.02 | +0.07 -0.02 | +0.8 -0.02 | +0.09 -0.02 | +0.1 -0.03 | +0.12 -0.03 | |||||
| Head Diameter （dg） | Basic dimension | 2 | 2.4 | 2.8 | 3.2 | 3.4 | 4 | 4.6 | 5.0 | 5.2 | 6 | ||
| Tolerances | ±0.3 0 | ±0.4 0 | ±0.5 0 | ±0.5 0 | |||||||||
| Head Height （K） | Approx. | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.3 | 1.3 | 1.5 | ||
| Nominal Diameter | Column 1 Column 2 Column 3 | 3.5 | 4 | 4.5 | 5 | 6 | 8 | 10 | 12 | 13 | 14 |
| Shank Diameter （d） | Basic dimension | 3.5 | 4 | 4.5 | 5 | 6 | 8 | 10 | 12 | 13 | 14 |
| Tolerances | +0.14 -0.04 | +0.16 -0.04 | +0.18 -0.05 | +0.2 -0.05 | +0.24 -0.06 | +0.32 -0.08 | +0.4 -0.08 | +0.48 -0.08 | +0.5 -0.08 | +0.56 -0.1 | |
| Head Diameter （dg） | Basic dimension | 7 | 8 | 9 | 10 | 12 | 16 | 16 | 19 | 21 | 22 |
| Tolerances | ±0.5 0 | ±0.6 0 | ±0.7 0 | ±0.8 0 | |||||||
| Head Height （K） | Approx. | 1.8 | 2 | 2.3 | 2.5 | 3 | 4 | 4 | 5 | 5 | 6 |
Small Size Round Head Rivets
| Nominal Diameter | Column 1 Column 2 Column 3 | 1 | 1.2 | 1.4 | 1.6 | 1.7 | 2 | 2.3 | 2.5 | 2.6 |
| Shank Diameter (d) | Basic dimension | 1 | 1.2 | 1.4 | 1.6 | 1.7 | 2 | 2.3 | 2.5 | 2.6 |
| Tolerances | +0.04 -0.02 | +0.05 -0.02 | +0.06 -0.02 | +0.07 -0.02 | +0.08 -0.02 | +0.09 -0.02 | +0.1 -0.03 | |||
| Head Diameter (dk) | Basic dimension | 1.8 | 2.2 | 2.5 | 3 | 3.5 | 4 | 4.5 | ||
| Tolerances | ±0.1 | ±0.15 | ||||||||
| Head Height (K) | Basic dimension | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | ||
| Tolerances | ±0.1 | |||||||||
| Nominal Diameter | Column 1 Column 2 Column 3 | 3 | 3.5 | 4 | 5 |
| Shank Diameter (d) | Basic dimension | 3 | 3.5 | 4 | 5 |
| Tolerances | +0.12 -0.03 | +0.14 -0.04 | +0.16 -0.04 | +0.2 -0.05 | |
| Head Diameter (dk) | Basic dimension | 5.2 | 6.2 | 7 | 8.8 |
| Tolerances | ±0.2 | ±0.3 | |||
| Head Height (K) | Basic dimension | 1.8 | 2.1 | 2.4 | 3 |
| Tolerances | ±0.15 | ||||
Thin Flat Head Rivets
JIS B 1213
| Nominal Diameter | Column 1 Column 2 Column 3 | 2 | 2.3 | 2.5 | 2.6 | 3 | 3.5 | 4 | 4.5 | 5 | 6 |
| Shank Diameter (d) | Basic dimension | 2 | 2.3 | 2.5 | 2.6 | 3 | 3.5 | 4 | 4.5 | 5 | 6 |
| Tolerances | +0.08 -0.02 | +0.09 -0.02 | +0.1 -0.03 | +0.12 -0.03 | +0.14 -0.04 | +0.16 -0.04 | +0.18 -0.05 | +0.2 –0.05 | +0.24 -0.06 | ||
| Head Diameter (dg) | Basic dimension | 4 | 4.6 | 5.0 | 5.2 | 6 | 7 | 8 | 9 | 10 | 12 |
| Tolerances | 0 -0.3 | 0 -0.4 | 0 -0.5 | ||||||||
| Head Height (K) | Basic dimension | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.3 | 1.5 | 1.6 | 2 | |
| Tolerances | +0.2 0 | +0.3 0 | +0.4 0 | ||||||||
Pan Head Rivets
JIS B 1213
| Nominal Diameter | Column 1 Column 2 | 3 | 3.5 | 4 | 5 | 6 | ||
| Shank Diameter （d） | Basic dimension | 3 | 3.5 | 4 | 5 | 6 | ||
| Tolerances | +0.12 -0.03 | +0.14 -0.04 | +0.16 -0.04 | +0.2 -0.05 | +0.24 -0.06 | |||
| Head Diameter （dg） | Basic dimension | 6 | 7 | 8 | 9.5 | 10.8 | ||
| Tolerances | +0.3 -0.2 | +0.4 -0.3 | ||||||
| Head Height （K） | Basic dimension | 1.7 | 1.9 | 2.2 | 2.8 | 3.3 | ||
| Tolerances | +0.2 -0.1 | +0.3 -0.2 | ||||||

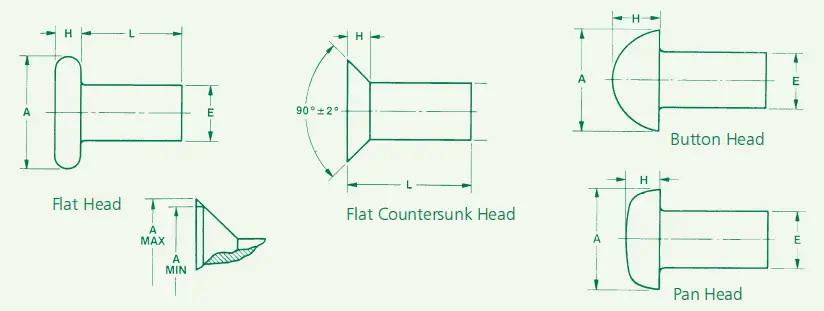

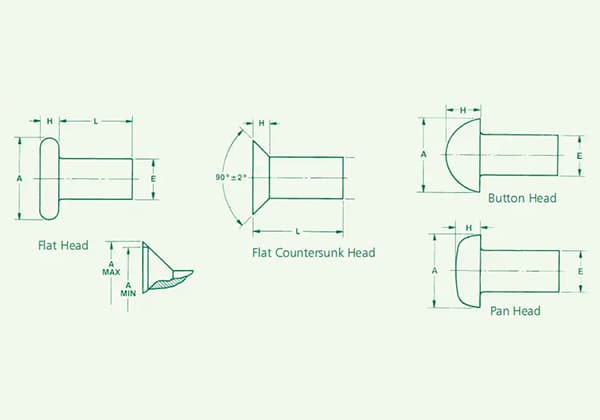

ANSI B18.1.1 1972
unit : inch
| Nominal Size or Basic Shank Diameter | Shank diameter E | Flat Head | Flat Countersunk Head | |||||||
| Head Diameter A | Head Height H | Head Diameter A | Head Height H | |||||||
| Max | Min | Max | Min | Max | Min | Ref | ||||
| 1/16 | 0.062 | 0.064 | 0.059 | 0.140 | 0.120 | 0.027 | 0.017 | 0.118 | 0.110 | 0.027 |
| 3/32 | 0.094 | 0.096 | 0.090 | 0.200 | 0.180 | 0.038 | 0.026 | 0.176 | 0.163 | 0.040 |
| 1/8 | 0.125 | 0.127 | 0.121 | 0.260 | 0.240 | 0.048 | 0.036 | 0.235 | 0.217 | 0.053 |
| 5/32 | 0.156 | 0.158 | 0.152 | 0.323 | 0.301 | 0.059 | 0.045 | 0.293 | 0.272 | 0.066 |
| 3/16 | 0.188 | 0.191 | 0.182 | 0.387 | 0.361 | 0.069 | 0.055 | 0.351 | 0.326 | 0.079 |
| 7/32 | 0.219 | 0.222 | 0.213 | 0.453 | 0.427 | 0.080 | 0.065 | 0.413 | 0.384 | 0.094 |
| 1/4 | 0.250 | 0.253 | 0.244 | 0.515 | 0.485 | 0.091 | 0.075 | 0.469 | 0.437 | 0.106 |
| 9/32 | 0.281 | 0.285 | 0.273 | 0.579 | 0.545 | 0.103 | 0.085 | 0.528 | 0.491 | 0.119 |
| 5/16 | 0.312 | 0.316 | 0.304 | 0.641 | 0.607 | 0.113 | 0.095 | 0.588 | 0.547 | 0.133 |
| 11/32 | 0.344 | 0.348 | 0.336 | 0.705 | 0.667 | 0.124 | 0.104 | 0.646 | 0.602 | 0.146 |
| 3/8 | 0.375 | 0.380 | 0.365 | 0.769 | 0.731 | 0.135 | 0.115 | 0.704 | 0.656 | 0.159 |
| 13/32 | 0.406 | 0.411 | 0.396 | 0.834 | 0.790 | 0.146 | 0.124 | 0.763 | 0.710 | 0.172 |
| 7/16 | 0.438 | 0.443 | 0.428 | 0.896 | 0.852 | 0.157 | 0.135 | 0.823 | 0.765 | 0.186 |
| Nominal Size or Basic Shank Diameter | Shank diameter E | Button Head | Pan Head | ||||||||
| Head Diameter A | Head Height H | Head Diameter A | Head Height H | ||||||||
| Max | Min | Max | Min | Max | Min | Max | Min | ||||
| 1/16 | 0.062 | 0.064 | 0.059 | 0.122 | 0.102 | 0.052 | 0.042 | 0.118 | 0.098 | 0.040 | 0.03 |
| 3/32 | 0.094 | 0.096 | 0.090 | 0.182 | 0.162 | 0.077 | 0.065 | 0.173 | 0.153 | 0.060 | 0.048 |
| 1/8 | 0.125 | 0.127 | 0.121 | 0.235 | 0.215 | 0.100 | 0.088 | 0.225 | 0.205 | 0.078 | 0.066 |
| 5/32 | 0.156 | 0.158 | 0.152 | 0.290 | 0.268 | 0.124 | 0.110 | 0.279 | 0.257 | 0.096 | 0.082 |
| 3/16 | 0.188 | 0.191 | 0.182 | 0.348 | 0.322 | 0.147 | 0.133 | 0.334 | 0.308 | 0.114 | 0.1 |
| 7/32 | 0.219 | 0.222 | 0.213 | 0.405 | 0.379 | 0.172 | 0.158 | 0.391 | 0.365 | 0.133 | 0.119 |
| 1/4 | 0.250 | 0.253 | 0.244 | 0.460 | 0.430 | 0.196 | 0.180 | 0.444 | 0.414 | 0.151 | 0.135 |
| 9/32 | 0.281 | 0.285 | 0.273 | 0.518 | 0.484 | 0.220 | 0.202 | 0.499 | 0.465 | 0.170 | 0.152 |
| 5/16 | 0.312 | 0.316 | 0.304 | 0.572 | 0.538 | 0.243 | 0.225 | 0.552 | 0.518 | 0.187 | 0.169 |
| 11/32 | 0.344 | 0.348 | 0.336 | 0.630 | 0.592 | 0.267 | 0.247 | 0.608 | 0.570 | 0.206 | 0.186 |
| 3/8 | 0.375 | 0.380 | 0.365 | 0.684 | 0.646 | 0.291 | 0.271 | 0.663 | 0.625 | 0.225 | 0.205 |
| 13/32 | 0.406 | 0.411 | 0.396 | 0.743 | 0.699 | 0.316 | 0.294 | 0.719 | 0.675 | 0.243 | 0.221 |
| 7/16 | 0.438 | 0.443 | 0.428 | 0.798 | 0.754 | 0.339 | 0.317 | 0.772 | 0.728 | 0.261 | 0.239 |
ANSI B18.1.1 1972
unit : inch
| Nominal Size or Basic Shank Diameter | Shank diameter E | Truss Head | |||||
| Head Diameter A | Head Height H | ||||||
| Max | Min | Max | Min | Max | Min | ||
| 3/32 | 0.094 | 0.096 | 0.090 | 0.226 | 0.206 | 0.038 | 0.026 |
| 1/8 | 0.125 | 0.127 | 0.121 | 0.297 | 0.277 | 0.048 | 0.036 |
| 5/32 | 0.156 | 0.158 | 0.152 | 0.368 | 0.348 | 0.059 | 0.045 |
| 3/16 | 0.188 | 0.191 | 0.182 | 0.442 | 0.422 | 0.069 | 0.055 |
| 7/32 | 0.219 | 0.222 | 0.213 | 0.515 | 0.495 | 0.080 | 0.066 |
| 1/4 | 0.250 | 0.253 | 0.244 | 0.590 | 0.560 | 0.091 | 0.075 |
| 9/32 | 0.281 | 0.285 | 0.273 | 0.661 | 0.631 | 0.103 | 0.085 |
| 5/16 | 0.312 | 0.316 | 0.304 | 0.732 | 0.702 | 0.113 | 0.095 |
| 11/32 | 0.344 | 0.348 | 0.336 | 0.806 | 0.776 | 0.124 | 0.104 |
| 3/8 | 0.375 | 0.380 | 0.365 | 0.878 | 0.848 | 0.135 | 0.115 |
| 13/32 | 0.406 | 0.411 | 0.396 | 0.949 | 0.919 | 0.145 | 0.123 |
| 7/16 | 0.438 | 0.443 | 0.428 | 1.020 | 0.990 | 0.157 | 0.135 |
Pop Rivets (RV-POP)
| Rivet Diameter （D） | Grip Range | Typical Shell Length （L）mm | Typical Rivet Clear-ance （L1）mm | ||
| （in） | （mm） | （in） | （mm） | ||
| 3/32″ | 2.4mm | 1/16-1/8 | 1.6-3.2 | 5.5 | 7.5 |
| 3/32″ | 2.4mm | 1/8-3/16 | 3.2-4.8 | 7.0 | 9.0 |
| 1/8″ | 3.2mm | Up to1/16 | Up to 1.6 | 4.7 | 6.8 |
| 1/8″ | 3.2mm | 1/16-1/8 | 1.6-3.2 | 6.3 | 8.4 |
| 1/8″ | 3.2mm | 1/8-3/16 | 3.2-4.8 | 7.9 | 10.0 |
| 1/8″ | 3.2mm | 3/16-1/4 | 4.8-6.4 | 9.5 | 11.6 |
| 1/8″ | 3.2mm | 1/4-5/16 | 6.4-7.9 | 11.1 | 13.2 |
| 1/8″ | 3.2mm | 5/16-3/8 | 7.9-9.5 | 12.7 | 14.8 |
| 1/8″ | 3.2mm | 3/8 – 1/2 | 9.5 – 12.7 | 16.4 | 18.5 |
| 1/8″ | 3.2mm | 1/2-5/8 | 12.7-15.9 | 20.1 | 22.2 |
| 5/32″ | 4.0mm | 1/16 | 15.9-19.0 | 5.5 | 7.8 |
| 5/32″ | 4.0mm | 1/16-1/8 | 1.6-3.2 | 7.1 | 9.4 |
| 5/32″ | 4.0mm | 1/8-3/16 | 3.2-4.8 | 8.7 | 11.0 |
| 5/32″ | 4.0mm | 3/16-1/4 | 4.8-6.4 | 10.3 | 12.6 |
| 5/32″ | 4.0mm | 1/4-5/16 | 6.4-7.9 | 11.9 | 14.2 |
| 5/32″ | 4.0mm | 5/16-3/8 | 7.9-9.5 | 13.5 | 15.8 |
| 5/32″ | 4.0mm | 3/8-1/2 | 9.5-12.7 | 17.1 | 19.4 |
| 3/16″ | 4.8mm | Up to 1/16 | Up to 1.6 | 6.3 | 8.9 |
| 3/16″ | 4.8mm | 1/16-1/8 | 1.6-3.2 | 7.9 | 10.5 |
| 3/16″ | 4.8mm | 1/8-3/16 | 3.2-4.8 | 9.5 | 12.1 |
| 3/16″ | 4.8mm | 3/16-1/4 | 4.8-6.4 | 11.0 | 13.6 |
| 3/16″ | 4.8mm | 1/4-5/16 | 6.4-7.9 | 12.6 | 15.2 |
| 3/16″ | 4.8mm | 5/16-3/8 | 7.9-9.5 | 14.2 | 16.8 |
| 3/16″ | 4.8mm | 3/8-1/2 | 9.5-12.7 | 17.9 | 20.5 |
| 3/16″ | 4.8mm | 1/2-9/16 | 12.7-14.3 | 19.5 | 22.1 |
| 3/16″ | 4.8mm | 1/2-5/8 | 12.7-15.9 | 21.1 | 23.7 |
| 3/16″ | 4.8mm | 5/8-3/4 | 15.9-19.0 | 24.2 | 26.8 |
| 3/16″ | 4.8mm | 3/4-7/8 | 19.0-22.2 | 27.4 | 30.0 |
| 3/16″ | 4.8mm | 8/7-1 | 22.2-25.4 | 30.6 | 33.2 |
| 3/16″ | 4.8mm | 1-3/8 | 25.4-34.9 | 36.0 | 38.6 |
| 1/4″ | 6.4mm | 3/16-1/4 | 4.8-6.4 | 12.6 | 16.6 |
| 1/4″ | 6.4mm | 1/4-3/8 | 6.4-9.5 | 15.8 | 19.8 |
| 1/4″ | 6.4mm | 3/8-1/2 | 9.5-12.7 | 19.0 | 23.0 |
| 1/4″ | 6.4mm | 1/2-5/8 | 12.7-15.9 | 22.1 | 26.1 |
| 1/4″ | 6.4mm | 5/8-3/4 | 15.9-19.0 | 25.3 | 29.3 |
| 1/4″ | 6.4mm | 3/4-7/8 | 19.0-22.2 | 28.4 | 32.4 |
