Cold Drawn Shaped Steel Tubes Weight Chart

What is a Weight Chart for Cold Drawn Shaped Steel Tubes?

A weight chart for cold drawn shaped steel tubes is a graphical representation of the weight of the tube based on its size and shape.

The weight chart provides a simple and straightforward way to compare the weight of different tubes and to determine the weight of a particular tube.

The weight chart is typically presented in the form of a table or graph, and it can be used to determine the weight of any size or shape of cold drawn shaped steel tube.

Why is the Weight Chart Important?

The weight chart is important because it provides crucial information regarding the weight of the tube, which is a critical factor in determining the strength and durability of the tube.

The weight of the tube affects its ability to withstand stress, pressure, and other types of loads, and it’s essential to choose a tube with the right weight for your particular application.

In addition, the weight chart can also be used to compare the weight of different tubes, which is useful for choosing the best option for your needs.

By comparing the weight of different tubes, you can determine which tube is best suited for your particular application, based on its weight, size, and shape.

How to Use the Weight Chart

Using the weight chart is simple and straightforward. To determine the weight of a particular cold drawn shaped steel tube, simply find the size and shape of the tube in the weight chart and read the corresponding weight.

The weight chart will typically provide the weight of the tube in pounds or kilograms, depending on the unit of measurement used.

It’s important to note that the weight chart is based on the average weight of the tube, and the actual weight of the tube may vary slightly due to manufacturing variations.

However, the weight chart provides a good estimate of the weight of the tube, and it’s an essential tool for choosing the right tube for your needs.

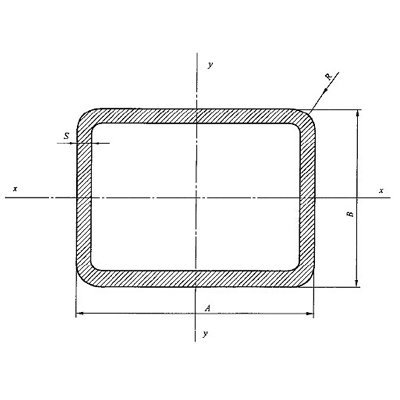

Rectangular Tube Weight Chart

Sizes
(mm)
Section Area
F
Weight
G
Moment of inertiaSection Coefficient
AScm²(kg/m)Jx=Jy/cm⁴Wx=Wy/cm³
120.80.3480.2730.07390.123
10 4230.3320.08730.146
1410.5030.3940.1440.206
1.50.7120.5590.1920.274
161.00.5830.4580.2220.278
1.50.8320.6530.3000.374
181.00.6630.5210.3240.360
1.50.9520.7470.4420.491
2.01.210.9520.5350.595
2010.7430.5830.4530 453
1.51.070.8410.6240.624
21.371.080.7630.763
2.51.641.290.8740.874
2210.8230.6460.6120.556
1.51.190.9360.850.773
271.531.21.050.953
2.51.841.451.211.1
252.52.141.681.861.49
32.491.952.081.57
302.52.642.083.412.27
33.012.423.862.58
3.53.52.754.252.83
43.893.054.583.05
322.52.842.234.212.63
33.332.614.793
3.53 782.975.293.31
3244.213.35.733.58
352.53.142.475.543.22
33.692.896.453.68
3.54.23.37.164.09
44.683.687.784.45
55.584.388.795.02
362.53.242.556.183.43
33.812.997.073.93
3.54.3_43.417.874.37
44.853.818.564.76
55.754.539.75.39
402.53.642.868.684.34
34.293.379.984.99
3.54.93.8511.165.58
45.494.3112.216.11
56.585.1613.986.99
67.555.9315.347.67
422.53.843.0210.154.83
34.533.5511.75.57
3.55.184.0713.16.24
45.814.5614.376.84
56.985.4816.567.87
68.036.318.228.58
453.55.64.416.437.3
46.234.9418.078.03
57.585.9520.99.29
4568.756.8723.1910.31
79.817.824.9711.1
810.88.4426.311.59
5047.095.5625.5610.22
58.586.7329.8111.93
69.957.8133.3513.34
711.218.836.2314.49
812.359.738.5115.41
5547.896.1934.8712.58
59.587.5240.9514.89
611.158.7546.1316.77
712.519.950.4718.35
813.9510.9554.0419.65
6048.696.8246.2115.4
510.588.354.5718.19
612.359.6961.8220.61
714.011168.0322.68
815.5512.2173.2824.43
6549.497.4559.7818.39
511.589.0770.9221.82
613.5510.6480.7224.84
715.4112.189.2727.46
817.1513.4796.6429.74
70410.298.0875.7821.65
512.589.8790.2625.79
614.711.58103.129.47
70716.8113.19114.532.72
818.7514.72124.535.57
75411.098.794.425.17
513.5810.66112.830.08
615.9512.52129.434.5
718 2114.29144.238.44
820.3515.98157.341.94
80411.899.33115.928.96
514.5811.44138.934.72
617.1513.46159.739.93
719.6115.39178.544.63
821.9517.23195.448.85
516.9813.33217.147.19
620.0315.72251.154.59
722.9718.03282.361.38
825.7920.25310.967.58
100518.5814.58282.856.57
621.9517.23328.265.54
725.2119.79370.274.04
828.3522.26408.981.78
110728.0121.99503.491.54
831.5524.77557.9101.4
934.9827.46608.4110.6

Rectangular Tube Weight Chart

Sizes
(mm)
Section Area
F
Weight
G
Moment of inertiaSection Coefficient
ABScm²(kg/m)JxJyWxwy
mmcm⁴cmm³
l050.80.2030.1600.00740.02390.02970.0478
10.2430.1910.00820.02700.03290.0547
1250.80.2350.1850.00880.03880.03540.0646
10.2830.2220.00990.04490.03950.0748
60.80.2510.1970.01390.04380.04620.073
10.3030.2380.01570.05090.05240.0849
1460.80.2830.2230.0160.06540.05350.0935
10.3430.2690.01820.07670.06080.110
1.50.4710.3700.02150.09730.07150.139
70.80.2990.2350.02330.07240.06650.104
10.3630.2850.02680.08520.07650.122
1.50.5010.3940.03240.1090.09270.156
100.80.3470.2730.05450.09340.1090.133
10.4230.3320.06400.1110.1280.158
1.50.5910.4640.08180.1440.1640.206
20.7310.5740.09250.1670.1850.238
1560.80.2990.2350.01710.07840.05710.105
10.3630.2850.01950.09220.06510.123
1.50.5010.3940.02300.1180.07680.157
20.6110.4800.02400.1330.07990.177
1680.80.3470.2730.03620.1110.09050.139
11.50.4230.3320.04210.1320.1050.165
20.5910.4640.05250.1730.1310.216
0.7310.5740.05790.2000.1450.25
120.80.4110.3230.09410.1480.1570.186
10.5030.3950.1120.1770.1860.222
1.50.7110.5590.1470.2360.2440.295
20.8910.7000.1700.2790.2840.349
1890.80.3950.310.05320.1620.1180.18
10.4830.3790.06240.1940.1390.215
1.50.6810.5350.07960.2580.1770.287
20.8510.6680.08970.3040.1990.337
100.20.4110.3230.06800.1740.1360.194
10.5030.3950.08020.2080.1610.231
1.50.7110.5590.10370.2780.2070.309
20.8910.70.1190.3290.2370.366
140.80.4750.3730.1490.2220.2130.246
10.5830.4580.1780.2660.2550.296
1.50.8310.6530.2390.3600.3410.400
21.0510.8250.2830.4320.4040.480
2080.80.4110.3230.04450.1970.1110.197
10.5030.3950.0520.2360.1300.236
1.50.7110.5590.06540.3150.1640.315
20.8910.70.07280.3730.1820.373
100.80.4430.3480.07480.2270.150.227
10.5430.4260.08840.2720.1770.272
1.50.7710.6060.1150.3670.2290.367
20.9710.7630.1320.4380.2630.438
120.80.4750.3730.1140.2560.1900.256
10.5830.4580.1360.3080.2260.308
1.50.8310.6530.180.4180.3000.418
21.050.8250.2110.5030.3520.503
2.51.240.9760.2310.5650.3850.565
2290.80.4590.3610.0640.2710.1420.246
10.5630.4420.07530.3250.1670.295
1.50.8010.6290.09670.440.2150.4
21.0110.7940.1100.5270.2440.479
2.51.190.9360.1170.5890.2590.536
140.80.5390.4230.1770.3610.2530.328
10.6630.520.2120.4350.3030.396
1.50.9510.7460.2860.5980.4080.543
21.210.9510.3410.7270.4870.661
2.51.441.130.3810.8280.5440.753
24120.80.5390.4230.1340.4030.2240.336
10.6630.5200.1600.4870.2670.406
1.50.9510.7470.2130.6690.3550.557
21.210.9510.2520.8150.4190.679
2.51.441.130.2770.9280.4620.774
25100.80.5230.4110.09180.3990.1840.320
10.6430.5050.1090.4820.2170.386
1.50.9210.7230.1420.660.2840.528
21.170.9200.1640.8020.3290.642
2.51.391.090.1780.9100.3550.728
1510.7430.5830.2790.6260.3720.501
1.51.070.8410.3790.8680.5050.6914
21.371.080.4571.070.6090.854
2.51.641.290.5151.230.6870.983
281110.7230.5670.1510.6830.2740.488
1.51.040.8180.20.9450.3630.675
21.331.050.2351.160.4260.328
2.51.591.250.2571.330.4680.951
1410.7830.6150.2630.7920.3760.566
1.51.130.8880.3561.10.5090.788
21.451.140.4281.360.6120.973
2.51.741.370.4821.580.6881.13
1610.8230.6460.3570.8650.4470.618
1.51.190.9350.4891.210.6120.863
21.531.20.5951.50.7431.07
2.51.841.450.6761.740.8451.24
282210.9430.740.7441.080.6770.774
1.51.371.081.041.520.9451.09
21.771.391.291.91.171.36
2.52.141.681.52.231.361.59
32.491.951.672.51.521.79
3.52.82.21.82.721.641.94
30121.51.130.8880.2631.190.4390.796
21.451.140.3121.480.5200.984
2.51.741.370.3471.710.5781.14
32.011.570.3691.890.6141.26
32131.51.220.9590.3391.480.5210.927
21.571.230.4061.840.6241.15
2.51.91.490.4542.140.6991.34
32.191.720.4882.390.7511.49
161.51.311.030.5531.690.6911.07
21.691.330.6742.110.8421.32
2.52.041.60.7682.470.9611.54
32.371.860.8402.771.051.73
251.51.581.211.572.321.261.45
22.051.611.972.921.581.83
2.52.491.962.313.451.852.16
32.912.282.63.912.082.44
35141.51.341.050.4391.960.6271.12
21.731.360.532.450.7571.4
2.52.091.640.5992.860.8561.64
32.431.90.6493.210.9281.84
3.52.732.140.6833.50.9752
36181.51.491.170.8112.460.9011.37
21.931.520.9983.11.111.72
2.52.341.841.153.651.282.03
32.732.141.274.131.412.29
3.53.082.421.374.531.522.51
2822.331.832.854.262.042.36
371521.851.450.6612.960.8811.6
2.52.241.760.7533.4711.88
32.612.050.8213.911.092.12
3.52.942.310.8704.281.162.31
43.252.550.9014.581.22.48
401622.011.580.8323.771.041.89
2.52.441.920.9534.461.192.23
32.852.231.055.051.312.52
3.53.222.531.125.551.42.77
43.572.81.165.971.462.98
2022.171.71.414.351.412.18
2.52.642.071.645.161.642.58
33.092.421.835.871.832.93
3.53.52.751.996.481.993.24
43.863.052.117.012.113.5
2522.371.862.395.071.912.54
2.52.892.272.826.042.253.02
33.392.663.186.92.543.45
3.53.853.023.497.652.793.83
44.293.363.758.312.994.15
423022.652.083.836.532.553.11
453022.772.184.077.732.713.44
2.53.392.664.839.263.224.12
33.993.135.5110.653.574.73
3.54.553.576.1111.94.075.29
45.093.996.6213.014.425.78
483022.892.274.39.062.873.77
2.53.542.785.1210.873.414.53
503223.052.45.1810.483.244.19
2.53.742.946.1812.63.865.04
34 413.467.0714.554.425.82
553823.492.748.3614.934.45.43
2.54.293.3710.0418.035.296.56
35.073.9811.5820.916.097.6
3.55.814.5612.9723.576.838.57
46.535.1214.2326.017 499.46
60403.56.34.9515.8430.417.9210.14
47.095.5617.4233.668.7111.22
58.576.7320.1539.4110.0713.14
705048.696.8234.0558.3513.5216.67
510.578.339.9869.1115.9919.75
612.349.6945.0478.5118.0222.43
71410.9949.2986.6419.7124.75
8060410.298.0758.7992.7619.60.23.19
512.579.8769.75110.723.2527.68
614.7411.5779.4126.826 4731.7
716.813.1987.81141.129.2735.28
9060411.09.8.765.07123.721.5927.48
513.5710.6577.33148.225.7832.93
615.9412.5288.18170.429.3937.86
718 2014.2997.7190.332.5742.3
10070515.5712.22122.0215.234.8643.04
618.3414.4140.1248.640.0449.73
72116.48156.4279.344.6855.86
823.5418.48170.9307.148.8361.43
11075517.0713.4155.8285.841.5451.96
620.1415.81179.5331.447.8760.25
723.118.13201373.453.6167.89
825.9420.36220.4412.158.7974.92
12080621.9417.22225.6430.656.471.76
725.219.78253.4486.663.3581.1
828.3422.25278.7538.569.6789.75
931.3724.63301.6586.575.4197.74
13085623.7418.64278.9547.863.6384.28
727.321.43314.07620.573.995.47
830.7424.13346.3682.481.49105.9
934.0726.75375.8751.688.43115.6
1408072821.98290.8715.172.7102.2
831.5424.76320.3794.180.08113.4
934.9727.45347.3867.886.81124.0
1038.2930.05371.7936.492.92133.8
15075728.722.53266,0814.670.93108.6
832.3425.39292.6905.378.03120.7
935.8728.16316.8990.184.47132.0
1039.2930.84338.61069.390.29142.6
16065832.3425.39220.9975.467.97121.9
935.8728,16238.11066.873.27133.3
1039.2930.84253.4115277.98144.0
1142.5933.43266.91231.282.13153.9

Elliptical Tube Weight Chart

Sizes (mm)Section AreaWeightMoment of inertiaSection Coefficient
ABSFGJxJYWxWy
mmcm²(kg/m)cm⁴cm³
630.50.06280.04930.00060.001950.003990.00651
840.50.08640.06780.001590.005000.007930.0125
0.80.1310.1030.002080.006970.01040.0174
10.1570.1230.002280.007930.01140.0198
1.20.1810.1420.002410.008670.01210.0217
1050.50.1100.08640.003310.01020.01320.0205
0.80.1680.1320.004520.01470.01810.0293
10.2040.160.0005080.0170.02030.0340
1.20.2380.1860.005480.01890.02190.0379
70.50.1260.09870.007290.01290.02080.0258
0.80.1940.1520.01030.01870.02950.0373
10.2360.1850.01190.02180.03410.0436
1.20.2750.2160.01320.02450.03770.0489
1240.50.1180.09250.002310.01430.01160.0239
0.80.1810.1420.003070.02070.01530.0345
10.220.1730.003380.02410.01690.0402
1.20.2560.2010.003580.02700.01790.045
60.50.1340.1050.005970.01820.01990.0304
0.80.2060.1620.008380.02660.02790.0444
10.2510.1970.009580.03130.03190.0521
1.20.2940.2310.01050.03530.03510.0588
1470.50.1570.1230.009790.02950.0280.0421
0.80.2440.1910.04100.04370.04000.0625
10.2980.2340.01620.05190.04630.0741
1.20.3510.2750.0180.05910.05150.0844
1550.50.1490.1170.004810.0290.01920.0386
0.80.2310.1820.006620.04270.02650.0569
10.2830.2220.007480.05050.02990.0673
1.20.3320.2610.008120.05730.03250.0764
1680.50.1810.1420.01500.04490.03740.0561
0.80.2820.2210.02170.06710.05420.0838
10.3460.2710.02540.08010.06340.100
1.20.4070.320.02850.09180.07120.115
1880.50.1960.1540.01660.06020.04160.0669
0.80.3060.240.02410.09050.06040.101
10.3770.2960.02830.1080.07070.12
1.20.4450.3490.03180.1250.07950.139
90.50.2040.1600.02170.06480.04820.0719
0.80.3190.2500.03180.09740.07060.108
10.3930.3080.03750.1170.08830.13
1.20.4630.3640.04240.1350.09420.15
20100.50.2280.1790.03020.08970.06040.0897
0.80.3570.2800.04460.1360.08920.136
10.440.3450.05290.1640.1060.164
1.20.520.4080.06020.1890.1210.189
120.80.3820.30.0680.1530.1130.153
10.4710.370.08130.1850.1360.185
1.20.5580.4380.09320.2140.1550.214
1.50.6830.5360.1090.2540.1810.254
2480.80.3820.30.03150.1900.07880.158
10.4710.3700.0370.2290.09250.191
1.20.5580.4380.04170.2660.1040.222
1.50.6830.5360.04740.3160.1190.263
120.80.4320.3390.07990.2410.1330.200
10.5340.4190.09560.2910.1590.243
1.20.6330.4970.110.3390.1830.282
1.50.7780.610.1280.4050.2140.337
26130.80.470.3690.1030.3090.1580.238
10.5810.4560.1240.3760.190.289
1.20.6900.5410.1420.4380.2190.337
1.50.8480.6660.1680.5240.2580.403
30100.80.4820.3790.06470.3810.1290.254
10.5970.4690.07690.4630.1540.309
1.20.7080.5560.08780.5410.1760.361
1.50.8710.6840.1020.6490.2040.433
30150.80.5450.4280.1620.4810.2160.321
10.6750.5300.1950.5870.260.391
1.20.8030.630.2260.6880.3020.459
1.50.990.7770.2680.8290.3580.552
180.80.5830.4580.2440.5420.2710.361
10.7230.5670.2960.6620.3290.441
1.20.8590.6750.3450.7760.3830.518
1.51.060-8320.4120.9370.4570.624
34170.80.6210.4870.2390.7080.2810.417
10.7690.6040.2900.8640.3410.508
1.20.9160.7190.3371.020.3960.599
1.51.130.8880.4031.230.4740.724
433222.231.752.714.341.72.02
442211.010.7890.6511.920.5920.875
1.21.20.9410.7632.270.6941.03
1.51.481.170.922.770.8361.26
21.951.531.163.541.051.61
451510.9110.7150.2821.640.3760.727
1.21.090.8520.3271.930.4360.857
1.51.341.050.3892.350.5191.04
21.761.380.4782.990.6371.33
2311.040-8140.7342.090.6380.929
1.21.240.9700.8612.470.7491.1
1.51.531.21.043.010.9041.34
22.011.581.313.861.141.72
2811.120.8751.142.380.8131.06
1.21.331.051.342.810.9571.25
1.51.651.291.633.441.161.53
22.171.72.074.411.481.96
502511.150.9000.9692.850.7751.27
1.21.371.081.143.370.9121.35
1.51.71.331.384.131.11.65
22.231.751.755.311.42.12
341721.481.160.4961.560.5840.918
36120.80.5830.4580.1150.670.1920.373
10.7230.5670.1390.8190.2310.455
1.20.8590.6750.1590.9610.2660.534
1.51.060.8320.1871.160.3120.644
180.80.6590.5180.2860.8460.3180.470
10.8170.6410.3471.040.3860.576
1.20.9720.7630.4051.220.4500.677
1.51.20.9440.4841.480.5380.821
21.571.230.61.870.6671.04
382610.9740.7650.8371.510.6440.793
1.21.160.9110.9831.780.7560.935
1.51.441.131.192.160.9141.14
21.891.481.52.761.161.45
402010.9110.7150.4831.440.4830.718
1.21.090.8520.5651.690.5650.846
1.51.341.050.6782.060.6791.03
21.761.380.8472.620.8471.31
433211.150.91.482.340.9271.09
1.21.371.081.752.761.091.29
1.51.71.332.133.381.331.57
503911.371.072.633.841.351.54
1.21.631.283.14.551.591.82
1.52.031.593.85.591.952.23
22.672.14.887.212.52.88
511711.040.8140.4182.420.45120.947
1.21.240.970.4882.850.5741.12
1.51.531.20.5843.480.6871.36
22.011.580.7234.450.8511.75
542811.260.9871.333.70.9491.37
1.21.51.181.574.381.121.62
1.51.861.461.95.361.361.99
22.451.922.436.921.732.56
552311.190.9370.8773.440.7621.25
1.21.421.121.034.070.8951.48
1.51.771.391.244.981.081.81
22.321.821.576.411.362.33
3511.381.092.224.471.271.62
1.21.651.32.635.311.51.93
1.52.051.613.216.51.832.37
22.72.124.128.392.353.05
2.53.342.624.9510.182.833.7
562811.291.011.374.040.9811.44
1.21.541.211.624.791.161.71
1.51.911.51.975.861.412.09
22.511.972.517.581.792.71
2.53.12.442.999.162.133.27
602011.230.9620.6963.970.6961.32
1.21.461.150.8154.70.8151.57
1.51.811.420.9825.750.9821.92
22.391.881.237.411.232.47
2.52.952.311.458.951.452.99
3011.381.091.74.991.141.66
1.21.651.32.015.921.341.97
1.52.051.612.457.271.632.42
22.72.123.129.42.083.13
2.53.342.623.7311.392.493.8
643211.481.162.086.081.391.9
1.21.771.392.467.211.532.25
1.52.191.722.998.861.872.77
22.892.273.8311.482.393.59
2.53.572.814.613.952.874.36
653511.541.212.576.681.472.06
1.21.841.443.037.921.732.44
1.52.291.83.719.742.123
23.022.374.7612.642.723.89
2.53.732.935.7315.373.274.73
662211.351.060.9375.320.8521.61
1.21.611.271.16.2911.91
1.521.571.337.731.212.34
22.642.071.6810.001.523.03
2.53.262.561.9812.41.83.67
70351.52.41.893.9611.72.263.34
23.172.495.0915.22.914.34
2.53.933.086.1218.523.55.29
72241.52.191.721.7510.11.462_81
22.892.272.2113.11.853.64
2.53.572.812.6315.912.194.42
76381.52.622.055.1115.022.693.95
23.462.716.5819.593.465.16
2.54.283.367.9423.914.186.29
80401.52.762.165.9917.6234.41
23.642.867.7322.973.865.74
2.54.523.559.3528.034.677.01
81271.52.471.942.5314.531.883.59
23.272.573.2318.92.394.67
2.54.053.183.8523.022.865.68
8.4421.52.92.286.9720.473.324.87
23.833.01926.664.296.35
2.54.753.7310.9132.645.27.77
561.53.232.5313.1624.694.75.88
24.273.3517.1832.256.147.68
2.55.34.1620.9639.527.499.41
90301.52.162.763.5320.082.354.46
23.642.864.5126.1635.81
2.54.523.555.4132.013.67.11

Flat Oval Tube Weight Chart

Sizes
(mm)
Section AreaWeightMoment of inertiaSection Coefficient
ABSFGJxJYWxWy
mmcm²(kg/m)cm⁴cm/m³
630.80.1030.08110.0009850.003200.005570.0107
840.80.1440.1130.002770.008510.01380.0213
10.1740.1370.003050.009750.01520.0244
930.80.1510.1190.001590.01070.01060.0237
1050.80.1860.1460.005980.01780.02390.0357
10.2260.1770.006750.02080.0270.0416
1240.80.2080.1640.004440.02750.02220.0458
10.2540.2000.004910.03230.02460.0538
60.80.2270.1780.01110.03230.03690.0538
10.2770.2180.01270.0380.04240.0634
1470.80.2680.210.01840.05280.05270.0755
10.3290.2580.02140.06300.06120.09
1.50.4690.3680.02680.08330.07660.119
1550.80.2660.2090.009550.05640.03820.0752
10.3260.2560.01080.06710.04340.0895
1.50.4650.3650.01270.08870.05100.118
1680.80.3090.2430.02850.08100.07130.101
10.380.2980.03350.09690.08370.121
1.50.5460.4290.04280.1310.1070.163
178.50.80.330.2590.03470.09810.08170.115
10.4060.3180.04090.1180.09620.139
1.50.5850.4590.05290.1590.1240.188
1.80.6850.5380.05800.1800.1360.212
20.7480.5880.06060.1920.1430.226
1860.80.3230.2530.01760.1010.05870.112
10.3970.3120.02030.1210.06770.134
1.50.5720.4490.02490.1640.08290.182
1.80.6700.5260.02640.1840.08810.206
20.7310.5740.02710.1960.09030.218
18910.4310.3390.04940.1410.1100.157
1.50.6230.4890.06430.1930.1430.214
1.80.7310.5740.07090.2180.1580.242
20.8000.6280.07440.2330.1650.259
201010.4830.3790.06970.1980.1390.198
1.50.7010.5500.09200.2720.1840.272
1.80.8240.6470.1020.3100.2050.310
20.9030.7090.1080.3330.2160.333
21710.4690.3680.03420.1980.09760.188
1.50.6790.5330.04310.2710.1230.258
1.80.7980.6270.04660.3080.1330.294
20.8740.6860.04830.3310.1380.315
2.4810.5400.4240.05320.3020.1330.251
1.50.7860.6170.06860.4190.1720.349
1.80.9270.7270.07520.4800.1880.400
21.020.7980.07860.5160.1970.430
1210.5860.460.1260.3510.2090.293
1.50.8550.6710.1680.4910.2790.409
1.81.010.7920.1910.5640.3180.470
21.110.8700.2030.6090.3390.508
2518.510.6800.5350.3110.4730.3360.379
1.50.9960.7820.4330.6670.4680.533
1.81.180.9260.4970.7700.5370.616
21.31.020.5360.8330.580.666
261310.6370.5000.1620.4520.2490.348
1.50.9320.7320.2210.6340.3400.488
1.81.10.8640.2500.7320.3850.563
21.210.9510.2670.7920.4110.609
278.510.6060.4750.06920.4570.1630.338
1.50.8850.6950.09020.60.2120.444
1.81.050.8200.09930.690.2340.511
21.150.9010.1040.7480.2450.554
13.510.6630.5200.1830.5090.2710.377
1.50.9710.7620.2500.7150.370.53
1.81.150.9010.2840.8270.4200.612
21.260.9920.3040.8960.450.664
301010.6830.5360.1100.6080.2210.405
1.510.7860.1470.8570.2940.571
21.31.020.1731.070.3470.716
1510.7400.5810.2560.7070.3410.472
1.51.090.8530.35310.470.667
21.421.110.4321.260.5760.84
341710.8430.6620.3791.040.4460.614
1.51.240.9730.5291.490.6220.874
21.621.270.6551.880.771.11
361210.8260.6480.1981.070.3310.596
1.51.220.9540.2701.530.4490.849
21.591.250.3251.930.5421.07
391310.8970.7040.2561.370.3940.705
1.51.321.040.3511.970.5391.01
21.731.360.4262.50.6561.28
402010.9970.7830.6311.720.6320.862
1.51.471.160.8902.480.8901.24
21.931.521.113.161.111.58
451511.040.8160.4032.140.5370.95
1.51.541.210.5593.080.7451.37
22.021.580.6883.940.9171.75
502511.250.9241.263.431.011.37
1.51.861.461.814.961.441.99
22.451.922.296.391.832.56
5l1711.180.9290.5973.140.7031.23
1.51.751.370.8364.540.9841.78
22.31.811.045.841.222.29
602011.41.10.99135.170.9931.72
1.52.071.631.417.521.412.51
22.732.141.779.721.773.24
3011.511.192.225.991.482
1.52.241.763.28.722.132.91
22.962.324.0911.32.733.77
643211.611.272.717.291.692.28
1.52.41.883.9110.72.443.33
23.172.495.0113.83.134.32
662211.541.211.346.921.222.1
1.52.291.81.910.11.733.06
23.022.372.413.12.183.97
691711.541.210.8287.2,40.9742.1
1.52.291.81.1610.61.373.06
23.022.371.4513.71.73.97
703511.771.393.579.582.042.74
1.52.632.065.1714.02.954
23.472.736.6518.23.85.21
72241.52.51.962.513.22.083.67
23.32.593.1717.22.644.76
2.54.093.213.7820.93.155.81
80401.53.012.377.8221.13.915.28
23.993.1310.127.65.056.89
2.54.953.8812.233.76.128.43
81271.52.822.223.62192.684.68
23.732.934.6224.73.426.1
2.54.623.635.5330.24.097.45
90301.53.142.475.0326.23.355.81
24.163.276.4534.24.37.59
2.55.164.057.7541.95.179.31

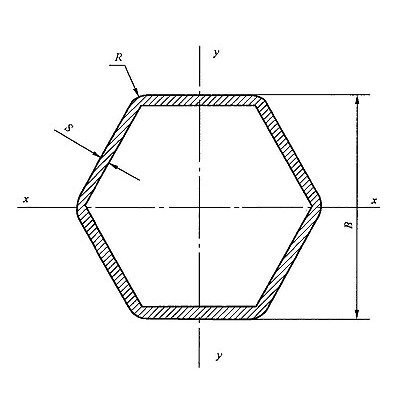

Hexagon Tube Weight Chart

Sizes
(mm)
Section AreaWeightMoment of inertiaSection Coefficient
BSFGJx=JYWxWy
mmcm²(kg/m)cm⁴cm³
81.50.320.2510.02010.05030.0436
20.3830.3010.02180.05440.0471
101.50.4240.3330.04450.0890.0771
20.5220.410.05030.1010.0871
121.50.5270.4140.08350.1390.121
20.6610.5190.0970.1620.14
141.50.6310.4960.1410.2010.174
20.7990.6270.1670.2380.206
171.50.7870.6180.2680.3150.273
21.010.7910.3240.3820.331
2.51.2010.9460.3680.4330.375
31.381.090.4010.4710.408
191.50.8910.70.3850.4060.351
21.150.8990.4720.4960.43
2.51.381.080.5410.5690.493
31.591.250.5950.6260.542
221.51.050.8220.6190.5630.488
21.351.060.7670.6970.604
2.51.641.290.8910.810.701
31.91.490.9920.9020.781
2421.491.171.020.8510.737
2.51.811.421.190.9940.861
32.111.661.341.110.965
42.642.071.551.291.12
2721.71.331.51.110.961
2.52.071.631.761.311.13
32.421.91.991.481.28
3.52.752.162.191.621.4
43.062.42.351.741.51
3021.911.52.11.41.21
2.52.331.832.491.661.44
32.732.152.831.891.64
3.53.112.443.132.091.81
43.472.733.392.261.96
3222.051.612.591.621.4
2.52.51.9r73.081.921.66
32.942.313.512.191.9
3.53.362.633.892.432.11
43.752.944.222.642.29
3622.321.823.772.091.81
2.52.852.244.52.52.17
33.362.645.172.872.49
3.53.843.025.763.22.77
44.313.386.293.53.03
4133.883.047.893.853.33
3.54.453.498.854.323.74
453.929.724.744.11
4.55.534.3410.515.134.44
56.034.7411.225.474.74
4634.43.4511.434.974.3
3.55.053.9712.885.64.85
45.694.4714.216.185.35
4.56.314.9515.436.715.81
56.95.4216.557.196.23
5535.334.1920.227.356.37
3.56.154.8222.918.337.21
46.945.4525.429.258.01
4.57.716.0527.7810.18.75
58.466.6429.9710.99.44
6536.37534.2810.559.13
3.57.365.7839.021210.4
48.326.5343.5113.3911.59
4.59.277.2847.7514.6912.72
510.19851.7615.9313.79
7549.717.6268.6218.315.85
4.510.838.575.5720.1517.45
511.929.3682.1821.9218.98
5.51310.288.4823.5920.43
614.0511.0394.4725.1921.82
85411.098.71101.923.9820.77
4.512.399.72112.526.4722.93
513.6510.72122.728.8725
5.514.911.7132.431.1626.98
616.1312.66141.833.3628.89
95412.489.8144.530.4326.35
4.513.9410.95159.933.6629.15
515.8912.08174.736.7831.85
5.516.8113.1918939.7834.45
618.2114.29202.742.6736.95
105413.8710.88197.737.6532.6
4.515.512.1721941.7236.13
517.1213.44239.745.6639.54
5.518.7114.69259.749.4642.84
620.2915.9227953.1446.02

Right-angled Trapezium Tube Weight Chart

Sizes (mm)Section AreaWeightMoment of inertiaSection Coefficient
ABHSFGJxJx1WxBWxA
mmcm²(kg/m)cm⁴cm³
25103021.681.321.886.511.095.06
30252021.681.321.013.890.984.01
301.51.591.252.138.251.385.67
32252021.721.351.043.950.9984.12
3520351.82.071.623.5612.951.878.14
302522.091.6427.751.566.36
253022.181.712.8810.821.827.63
4540601.52.952.3115.4260.425.0420.54
32501.83.012.3610.941.094.1317.42
5040351.52.271.784.5517.422.5110.33
301.52.121.663.1912.22.058.45
301.72.391.873.5513.572.289.4
35602.24.253.3421.6581.56.8228.86
45301.21.771.392.7610.791.817.32
1.42.051.613.1612.362.078.39
1.72.471.943.7314.62.459.91
1.82.612.053.9215.322.5710.40
22.892.274.2716.712.811.34
401.82.972.337.6229.853.7415.19
5348471.73.162.4811.0743.454.6418.8
5550401.83.152.488.2932.484.0716.5
6055501.53.12.4312.6649.774.9920.02

Conclusion

The weight chart for cold drawn shaped steel tubes is a critical tool for understanding the weight of the tube, which is an important factor in determining its strength and durability.

By using the weight chart, you can make informed purchasing decisions, choose the right tube for your needs, and ensure that you’re using a tube that is strong and durable enough to meet your requirements.

Don't forget, sharing is caring! : )
Shane
Author

Shane

Founder of MachineMFG

As the founder of MachineMFG, I have dedicated over a decade of my career to the metalworking industry. My extensive experience has allowed me to become an expert in the fields of sheet metal fabrication, machining, mechanical engineering, and machine tools for metals. I am constantly thinking, reading, and writing about these subjects, constantly striving to stay at the forefront of my field. Let my knowledge and expertise be an asset to your business.

Up Next

Mastering CAD/CAM: Essential Technologies Explained

Basic Concepts of Computer-Aided Design and Computer-Aided Manufacturing Computer-aided design and computer-aided manufacturing (CAD/CAM) is a comprehensive and technically complex system engineering discipline that incorporates diverse fields such as computer [...]

Virtual Manufacturing Explained: Concepts & Principles

Concept of Virtual Manufacturing Virtual Manufacturing (VM) is the fundamental realization of the actual manufacturing process on a computer. It utilizes computer simulation and virtual reality technologies, supported by high-performance [...]

Understanding Flexible Manufacturing Systems: A Guide

A Flexible Manufacturing System (FMS) typically employs principles of systems engineering and group technology. It connects Computer Numerical Control (CNC) machine tools (processing centers), coordinate measuring machines, material transport systems, [...]

Exploring 4 Cutting-Edge Nanofabrication Techniques

Just as manufacturing technology plays a crucial role in various fields today, nanofabrication technology holds a key position in the realms of nanotechnology. Nanofabrication technology encompasses numerous methods including mechanical [...]

Ultra-Precision Machining: Types and Techniques

Ultra-precision machining refers to precision manufacturing processes that achieve extremely high levels of accuracy and surface quality. Its definition is relative, changing with technological advancements. Currently, this technique can achieve [...]

Exploring High-Speed Cutting: Tech Overview & Application

Cutting machining remains the most prominent method of mechanical processing, holding a significant role in mechanical manufacturing. With the advancement of manufacturing technology, cutting machining technology underwent substantial progress towards [...]

Top 7 New Engineering Materials: What You Need to Know

Advanced materials refer to those recently researched or under development that possess exceptional performance and special functionalities. These materials are of paramount significance to the advancement of science and technology, [...]

Metal Expansion Methods: A Comprehensive Guide

Bulge forming is suitable for various types of blanks, such as deep-drawn cups, cut tubes, and rolled conical weldments. Classification by bulge forming medium Bulge forming methods can be categorized [...]
MachineMFG
Take your business to the next level
Subscribe to our newsletter
The latest news, articles, and resources, sent to your inbox weekly.
© 2024. All rights reserved.

Contact Us

You will get our reply within 24 hours.
